Advanced Sheet Metal

Precision Inconel
Sheet Metal Fabrication

Precision Forming. Advanced Welding. Engineered for Thermal Barriers and High-Corrosion Assemblies.

Get a Technical Quote Consult on DFM

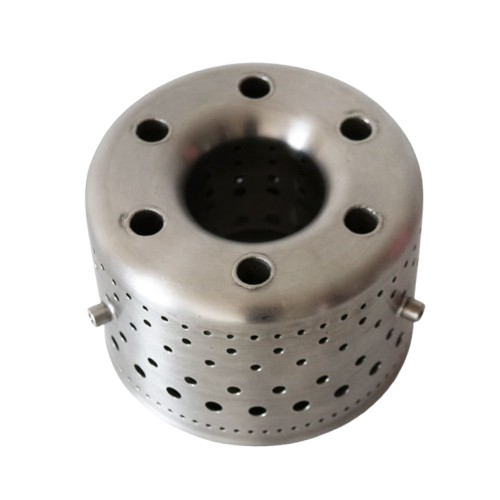

Combustion Liners

Why AlloyAccu for Inconel Sheet?

Unlike standard stainless steel, Inconel sheet metal is “stubborn.” It work-hardens instantly and has significant spring-back during forming.

At AlloyAccu, we combine decades of experience with high-tonnage CNC equipment to master these superalloys. We don’t just “bend” metal; we engineer solutions for exhaust systems, heat shields, and combustion liners that must perform at 2000°F.

2000°F Performance

Spring-back Control

Corrosion Resistant

ASME Certified

Fabrication Capabilities

Laser & Waterjet Cutting

Fiber laser cutting with minimal HAZ. Waterjet for zero thermal distortion.

  • Accuracy: ±0.1 mm
  • Intricate profiles

CNC Bending & Forming

High-tonnage press brakes calibrated for high yield strength.

  • Spring-back compensation
  • Custom brackets & enclosures

Specialized Welding

GTAW (TIG), Micro-Laser, and Spot Welding.

  • ASME Section IX Certified
  • Optimized shielding gas

Deep Drawing & Stamping

Complex 3D shapes like caps, housings, and bellows.

  • Progressive die stamping
  • High depth-to-diameter ratios

Integrated Assembly

Turn-key mechanical assemblies with hardware insertion.

  • PEM nut/stud installation
  • Complex multi-part heat shields

Surface Finishing

Functional and aesthetic finishing options.

  • Bead Blasting & Passivation
  • Electropolishing for ultra-clean

Supported Inconel Sheet Grades

Inconel 625

UNS N06625

The standard for sea-water and chemical resistance.

Inconel 718

UNS N07718

High-strength sheet for aerospace structural components.

Inconel 600/601

Thermal Processing

Best for furnace muffles and high-temp equipment.

Thickness Range: 0.5 mm (0.020”) foil to 6.0 mm (0.236”) heavy plate

Typical Industry Applications

Aerospace

Exhaust ducts, manifold heat shields, honeycomb structures.

Energy

Furnace liners, muffle tubes, burner components.

Marine

Bellows and flexible joints for saltwater exhaust systems.

Automotive

Turbocharger shields and wastegate components.

FAQ: Inconel Sheet Metal Expertise

Why is Inconel harder to bend than 316 Stainless Steel?

Inconel has a much higher yield strength and work-hardening rate. It requires more force and much larger bend radii to prevent cracking at the bend line.

Do you support low-volume prototypes?

Yes. We use soft-tooling and laser-cutting setups to support R&D and prototype phases before moving to hard-tooling or stamping.

Can you weld Inconel sheet to other materials?

Yes, we can weld Inconel to various stainless steel grades and other nickel alloys, following specific filler metal and thermal control procedures.

Ready to Elevate Your Thermal Performance?

Don’t settle for “general” sheet metal shops. Partner with a superalloy specialist who understands the unique demands of Inconel.

sales@alloyaccu.com

Average Quote Turnaround: 24-48 Hours

Request Fabrication Quote

Upload your drawings (STEP/PDF) for a review.
