High-Strength Structural Integrity

Custom Inconel Forging Services

Superior Grain Flow. Maximum Fatigue Strength. Engineered for Critical Structural Integrity.

Get a Technical Quote View Capacity List

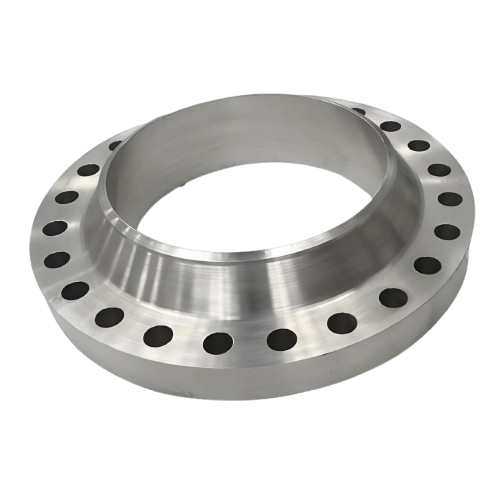

Inconel Forged Steel Flange

Why Choose Forging for Inconel Components?

In environments where high pressure, extreme heat, and mechanical stress collide, the internal structure of the metal is just as important as its external dimensions.

Inconel Forging goes beyond simple shaping; it refines the alloy’s grain structure. By aligning the grain flow with the geometry of the part, AlloyAccu delivers components with significantly higher impact strength, better ductility, and superior fatigue resistance compared to parts machined from bar stock or cast in molds.

The Forging Advantage

1

Impact Strength

Resists sudden shock loads

2

Grain Flow Alignment

Follows part geometry

3

Fatigue Resistance

Extended lifecycle

Inconel Forging Capabilities

From seamless rings to complex near-net shape structural parts.

Seamless Rolled Rings

Best for: Turbine rings, flange gaskets, and high-pressure seals.

  • Capacity: Up to Ø1000 mm
  • No weld seams
  • Exceptional tangential strength

Closed-Die Forging

Best for: Complex geometries, turbine disks, valves, fittings.

  • Near-Net Shape accuracy
  • Reduces material waste
  • Weight: Up to 200 kg

Open-Die Forging

Best for: Large shafts, blocks, and shapes for machining.

  • Ideal for low-volume
  • High-mass components
  • Structural consolidation

Technical Specifications: The Power of Forging

Property Forged Inconel (718/625) Casting / Machined Bar
Grain Structure Aligned & Refined Random or Interrupted
Fatigue Resistance Highest Moderate
Internal Defects Virtually Zero (High Density) Possible Porosity/Inclusions
Impact Strength Superior Standard
Typical Grades Inconel 718, 625, X-750 Various

Quality Assurance & Testing (E-E-A-T)

Forged components are often “life-critical.” At AlloyAccu, we back our forging process with rigorous validation to ensure ASTM and ASME compliance.

Ultrasonic Testing (UT)

100% inspection to ensure zero internal voids or cracks.

Grain Flow Analysis

Verification that the process has optimized the internal structure.

Destructive Testing

Tensile and impact testing to verify mechanical properties.

Full Traceability

Every part comes with MTR and heat treatment certification.

Validated Integrity

Zero defects allowed.

Industries That Rely on Forged Inconel

Aerospace

Turbine disks, shafts, high-load engine mounts.

Energy & Power

Seamless rings for steam turbines, reactor internals.

Oil & Gas

Wellhead components, subsea connector bodies.

Space

Rocket engine thrust chambers, cryogenic supports.

FAQ: Inconel Forging Expert Q&A

How does forging improve the performance of Inconel 718?

Forging breaks down the cast dendritic structure and replaces it with a fine, uniform grain structure. This increases the material’s ability to resist creep and stress-rupture at temperatures up to 1300°F (704°C).

Do you offer post-forging CNC machining?

Yes. Most forged parts are delivered as “Near-Net Shapes.” We provide full in-house 5-axis CNC machining to bring your forged components to their final, high-precision dimensions (±0.005mm).

What is the lead time for custom Inconel forgings?

Lead times vary by complexity. Open-die forgings can often be delivered in 4-6 weeks, while custom closed-die projects requiring dedicated tooling typically take 8-12 weeks.

Engineer Your Strength with AlloyAccu

Eliminate structural risks and optimize your material usage. Partner with AlloyAccu for high-performance Inconel forgings.

Upload Your Drawing

Get a technical consultation with every RFQ.

sales@alloyaccu.com

Request Forging Quote

Upload your STEP/PDF for a review.
